FPV Drone

Project Overview

This project involves the assembly and programming of a fully functional FPV drone from individual components. The build demonstrates the integration of multiple electronic systems including flight control, propulsion, and video transmission to create a complete flying drone. All components were hand-soldered and assembled, showcasing practical skills in electronics manufacturing and system integration.

The completed drone serves as a functional platform for aerial photography, FPV piloting, and further experimentation with UAVs in a rapidly growing sector.

Project Budget: €400.

5.8GHz Video Frequency

2200mAh Battery Capacity

6-Axis Stabilization

4 Motors

Video Demonstration

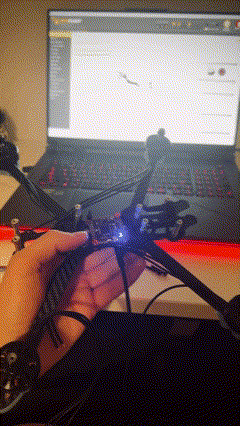

Drone motor functionality test in action

Real Life Applications

Diverse applications demonstrating the versatility of modern drone technology

Agriculture

Applying fertilizers or pesticides with precision to minimize environmental impact and maximize effectiveness. Modern agriculture increasingly relies on unmanned aerial vehicles (UAVs).

Search & Rescue Operations

Drones can assist in locating missing persons in remote or challenging terrains, providing real-time video feeds to rescue teams.

Delivery Services

Package delivery including emergency medical deliveries. The global market for drone package delivery is expected to reach US$33.4 billion by 2030.

Security & Surveillance

Using drones to detect intrusions or unusual movement patterns that might indicate suspicious activity.

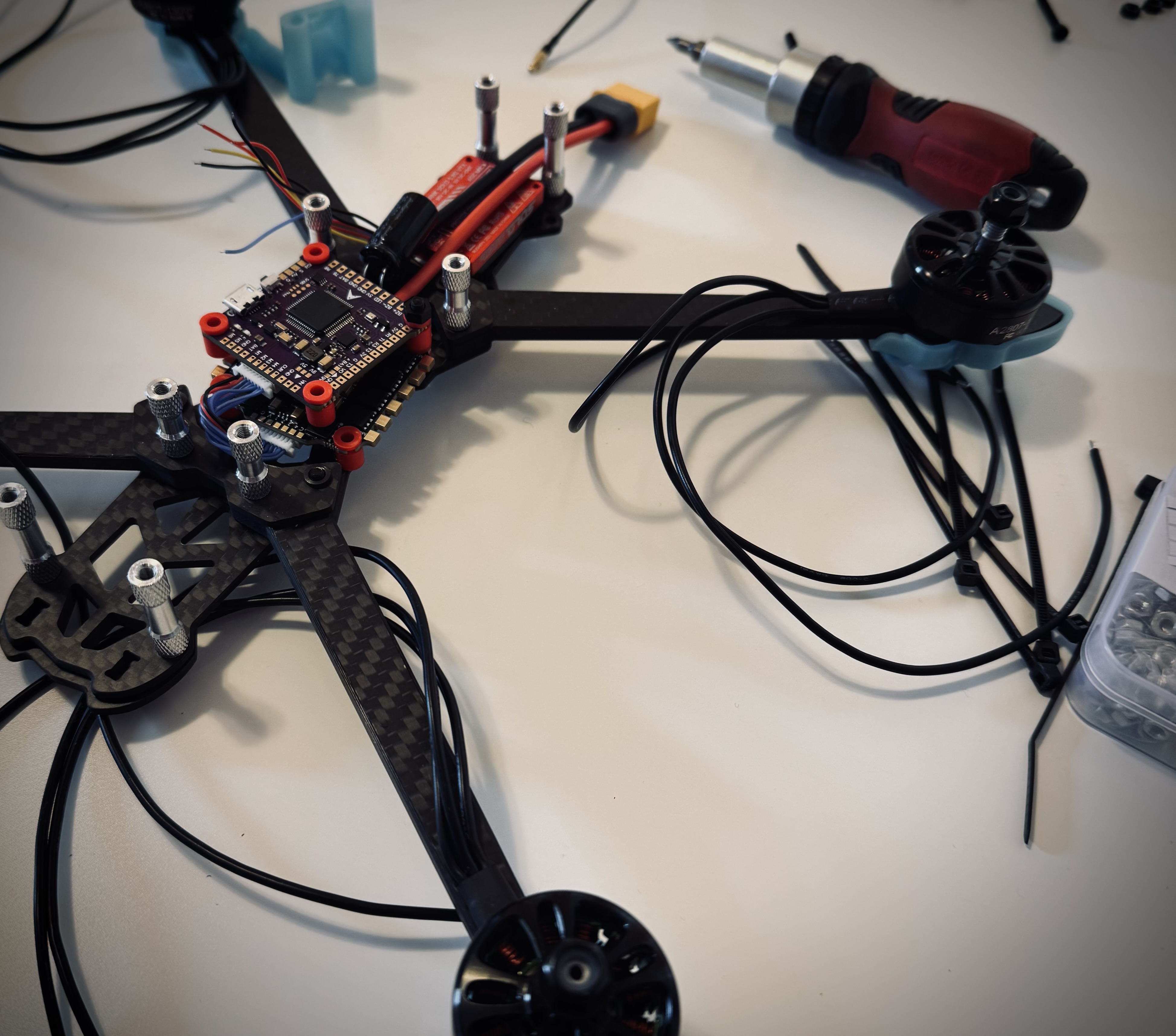

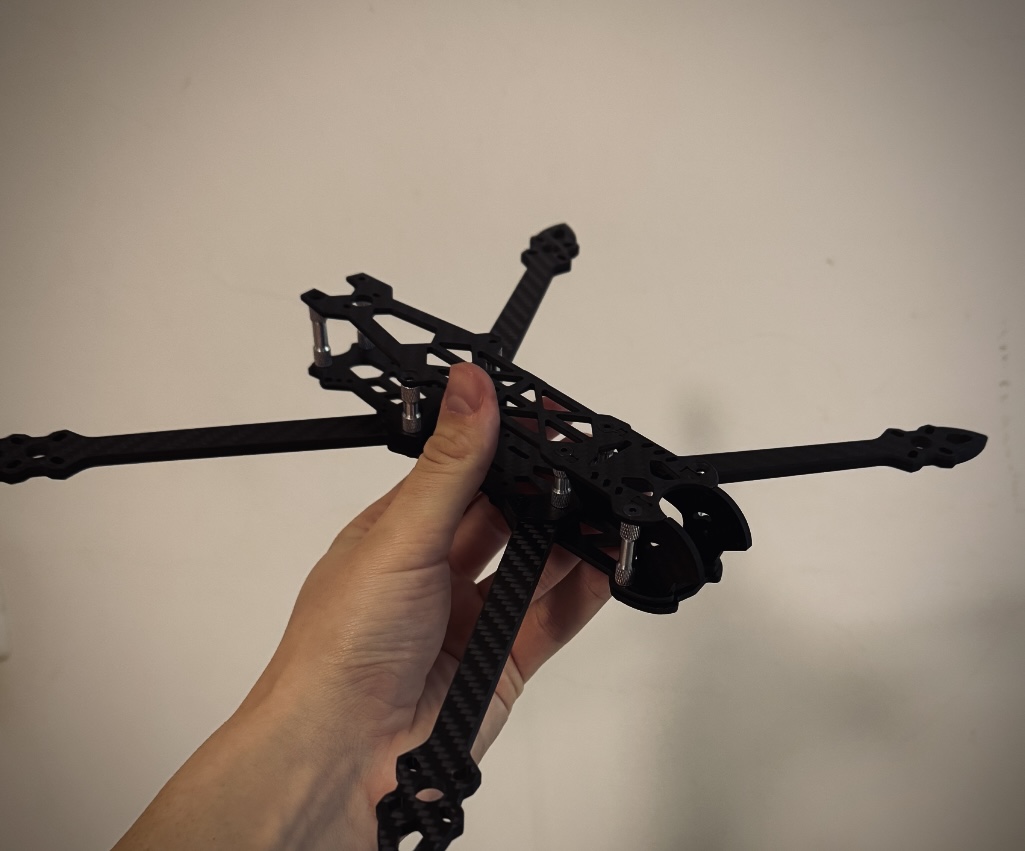

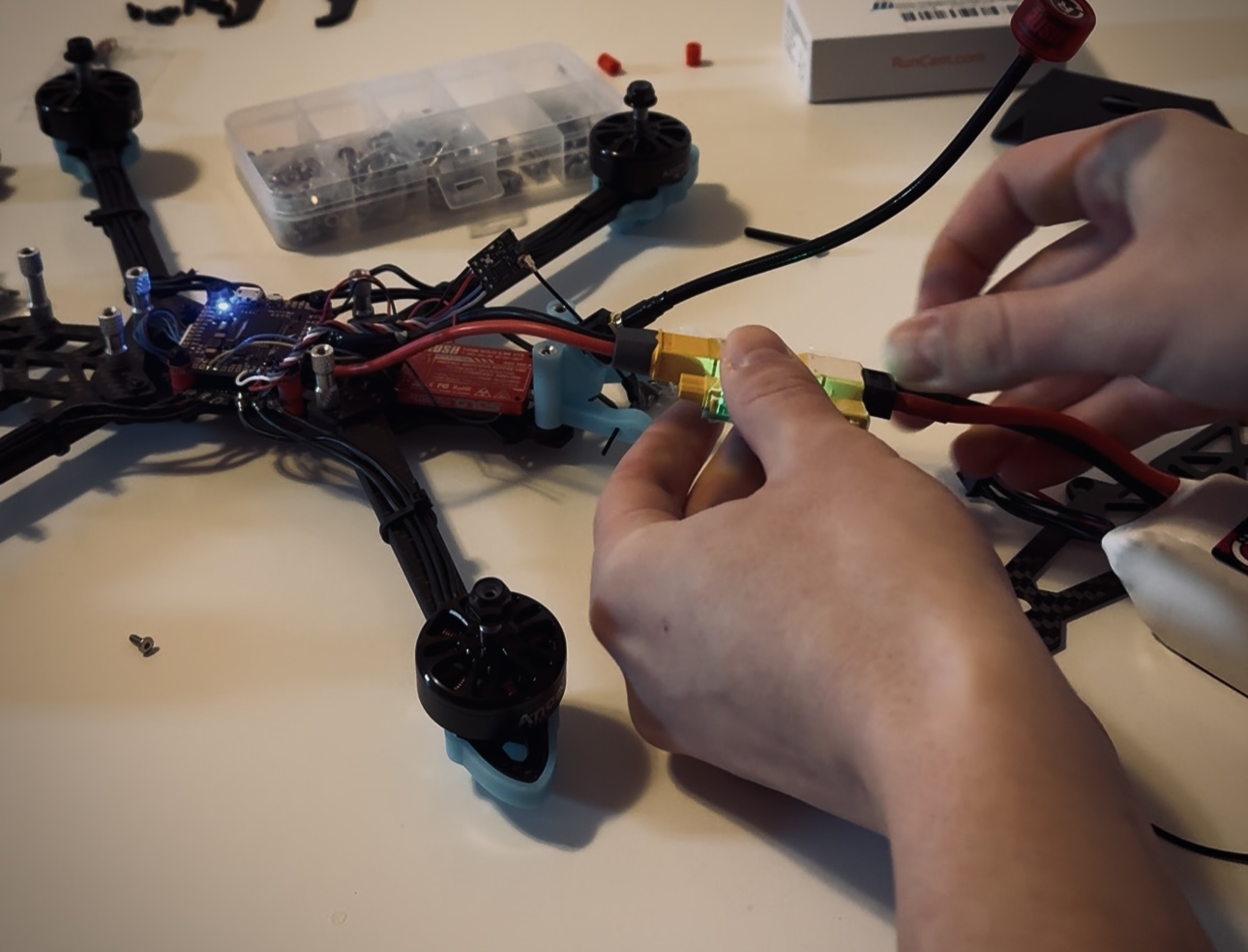

Project Gallery

Visual documentation of the drone building process

Technical Specifications

Detailed breakdown of components used in this project

Hardware Components

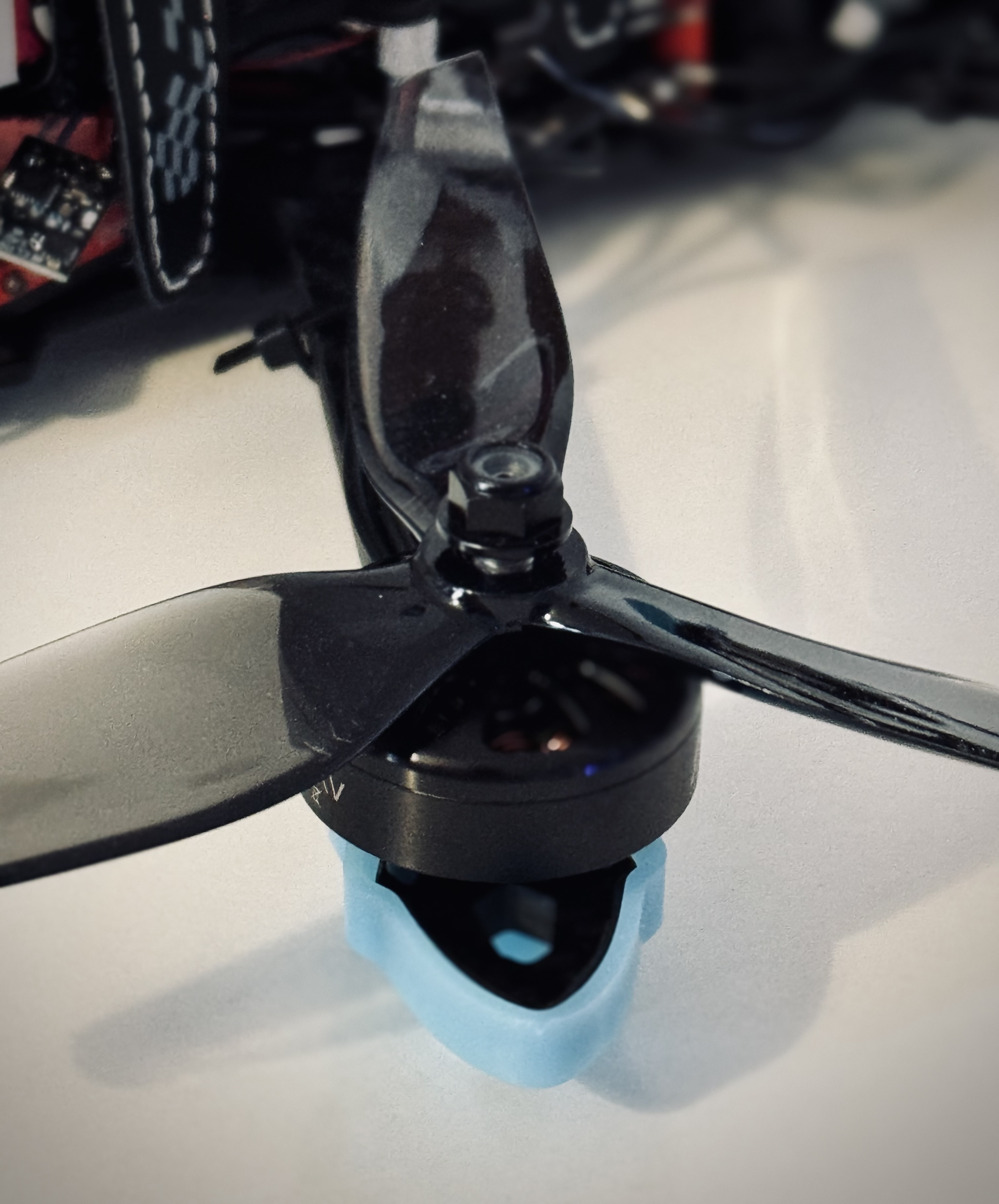

Brushless Motors: The Brushless Motors are the propulsion system of the drone, providing an excellent balance of power, efficiency, and reliability.

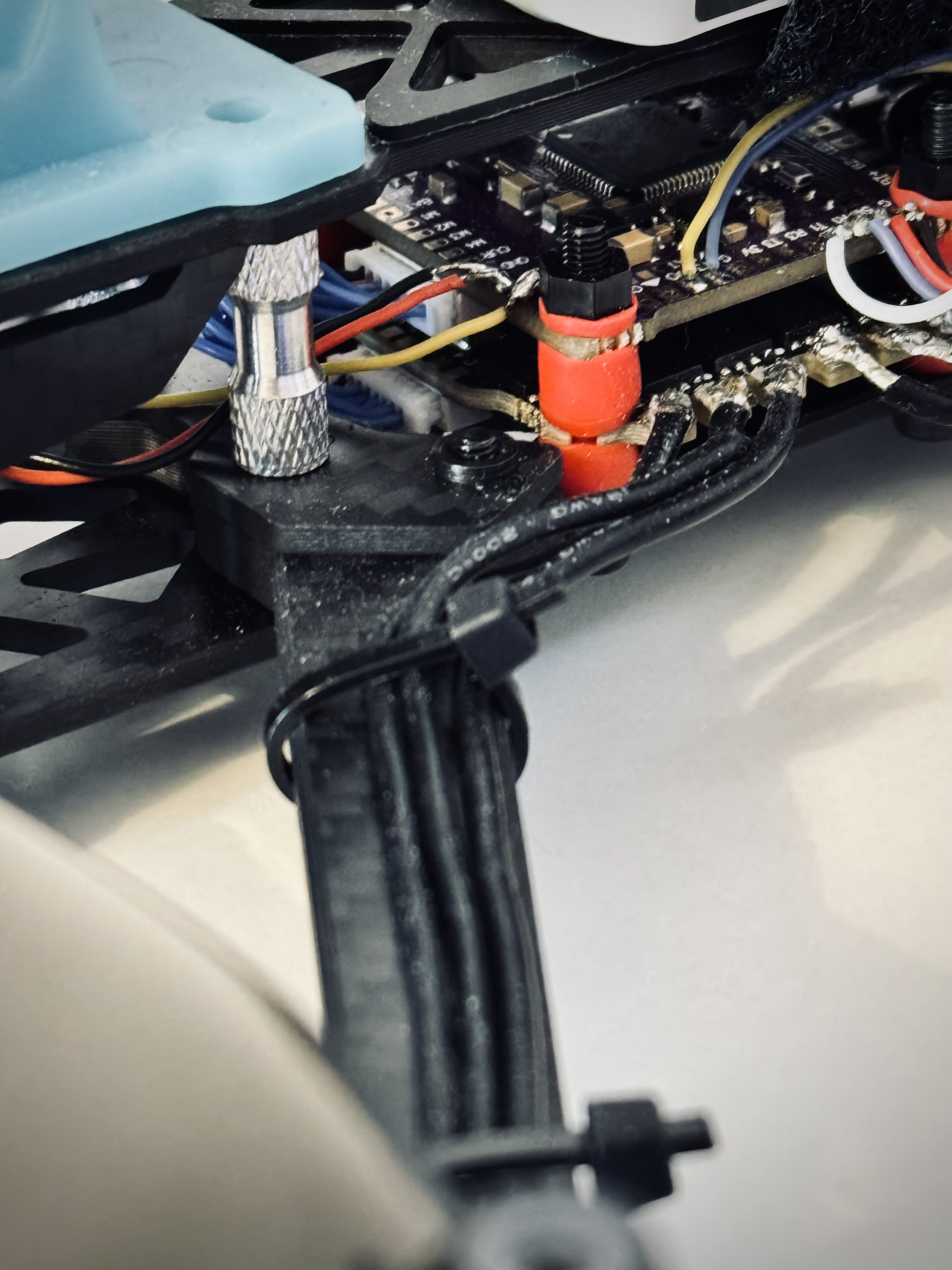

Flight Control System: F4 V3S Stack flight controller that is equipped with a Gyroscope, Barometer, Motion Processing Unit, and an Accelerometer.
Video Transmitter: Rush Tank Solo VTX is a high-performance 5.8GHz analog video transmitter.
Antenna: Using Rush SMA (SubMiniature version A) Antenna for video transmission.

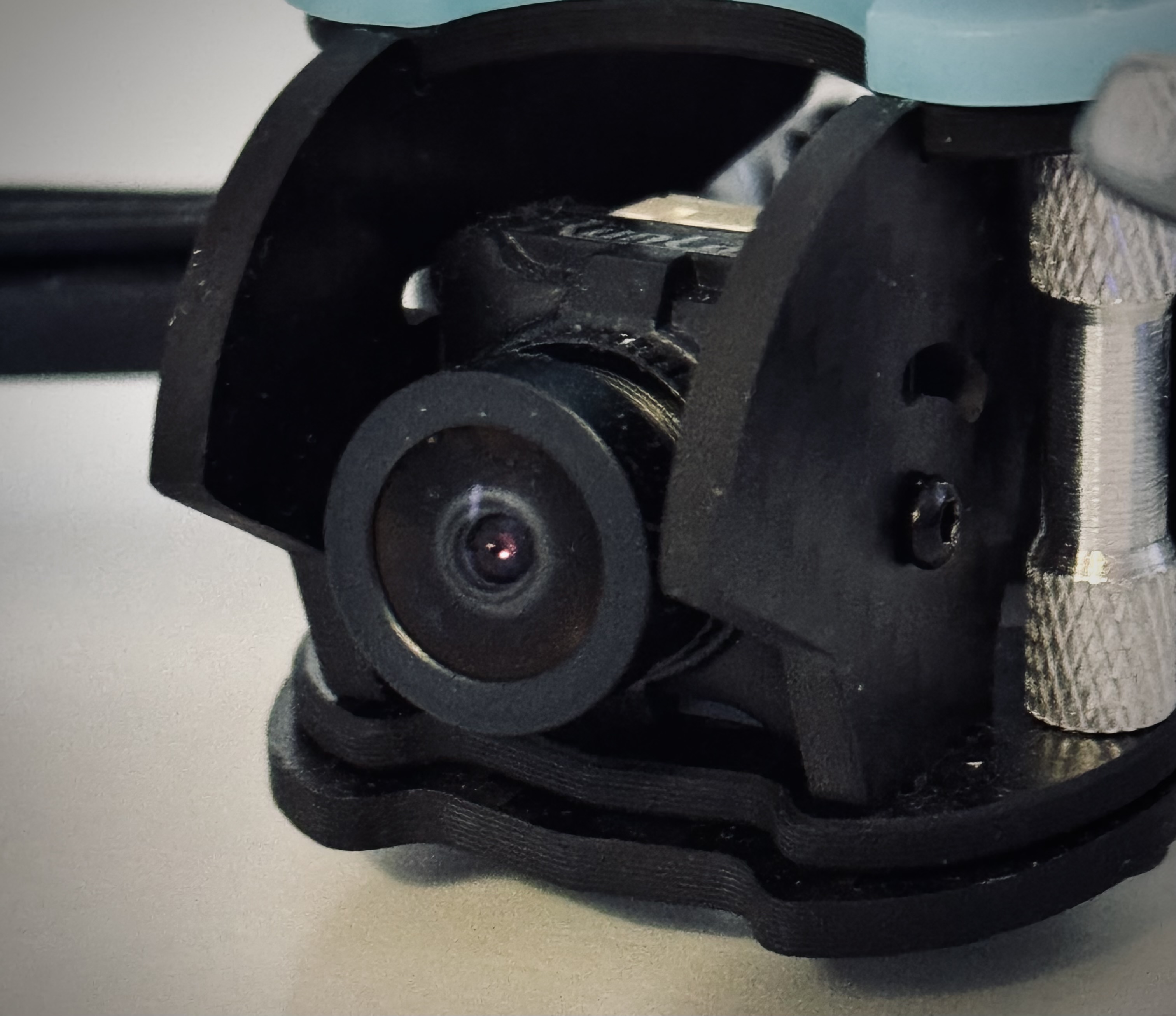

Camera: High-definition camera for video capture and live streaming.
Power: 4s, 2200mAh lithium polymer battery.

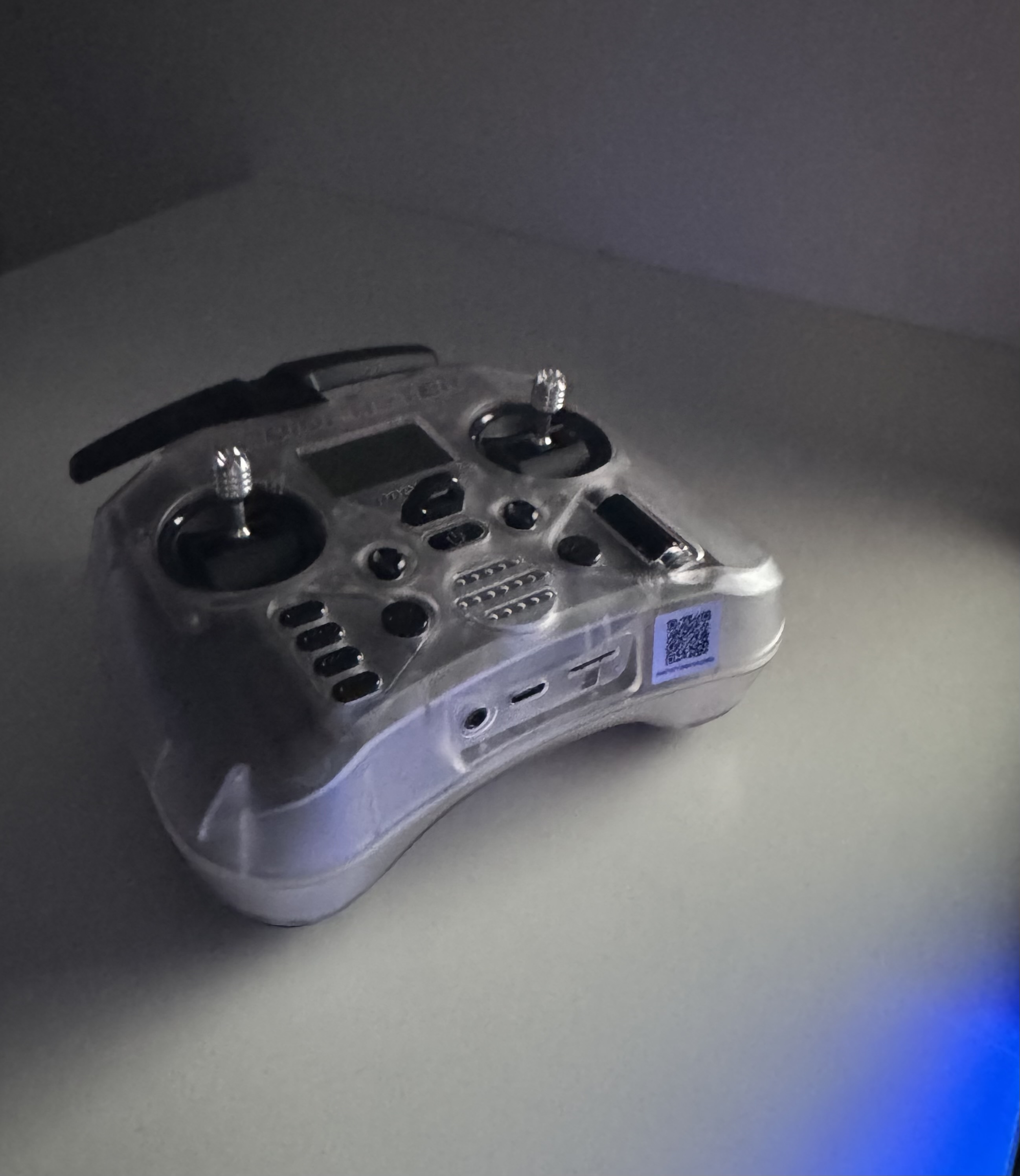

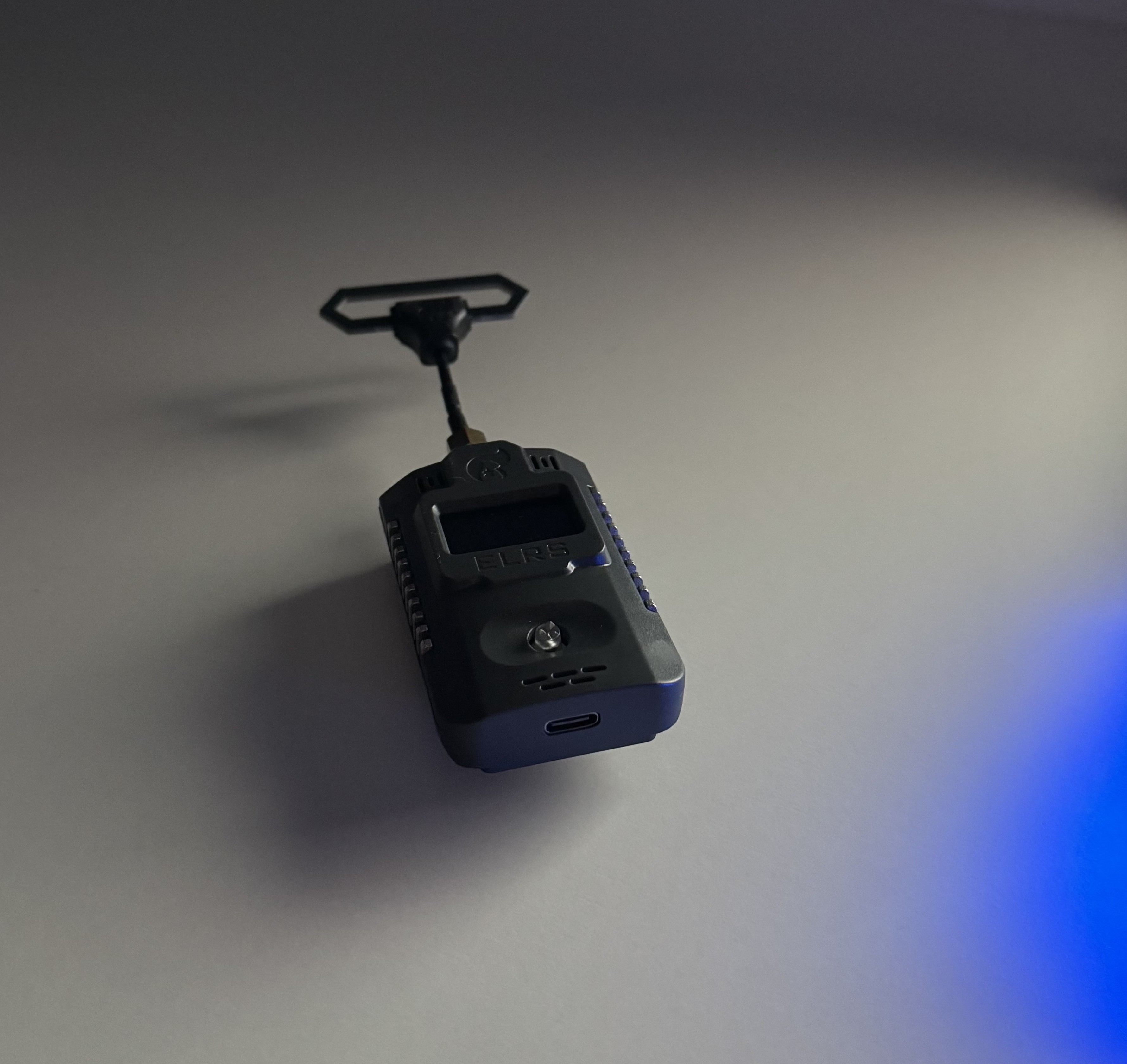

Receiver: ELRS (ExpressLRS) receiver for long-range, low-latency control signal transmission.

Technology Used

Flight Controller Board ELRS Receiver Video Transmitter LiPo Battery Camera 2200mAh LiPo Battery Rush SMA Antenna Betaflight Configurator
